24 August, 2014

Rhino 5] 2014/08/20/Wed 2_Farnsworth House_Mies can de Rohe




<사진 출저: http://ifitshipitshere.blogspot.kr>


1. Plan

Plan
Section

Elevation



2. Modeling

최종모델 및 도면 이미지 파일
  • Change Object Layer : 선택한 개체를 이 레이어로 변경

  • Picture Frame : 이미지를 벡터로 불러와 깨짐현상이 없음 (Command에 써도됨)
        ※ 이미지를 부른 후 Rock을 설정한 후에 작업하면 선택이 되지 않음
  • Ctrl + Shift + H : Showselected
  • CurveBoolean : 선택한 커브에서 만들어지는 영역을 선택하여 새로운 커브로 만듬
  • ExtrudeSrf(ES) (벡터방향값) - Deleteinput(L) (Yes:추가되어생성/No:다른개체로생성)
  • MergeAllFaces :
  • Sellast : 마지막으로 선택했던 것을 선택
  • Scale1D(1D) - Midpoint : 기준점으로부터 대칭으로 생성

23 August, 2014

Rhino 5] 2014/08/20/Wed 1_Basic Setting

1. 기본 화면 설명
    - Menu Bar : File, Edit, View, Curve, Surface, Solid, Mesh, Dimension,,,
    - Command history/prompt : 2줄 정도가 적당 => "F2" 로 확인 가능
    - Tab toolbar , Side toolbar
    - Viewport : Top(Ctrl+F1), Front(Ctrl+F2), Right(Ctrl+F3), Perspective(Ctrl+F4), 4view(Ctrl+F5)
        => 이대로 사용 권장 (Options->Keyboard)
    - Panel : Properities(개체속성 및 변경), Layers, Display, Help
    - Osnap toolbar(3번에서 설명), Status bar


2. 기초설정-자주쓰는 캐드 명령어 동기화

  [Aliases]
    - CC  '_Circle
    - O    '_Offset
    - L     '_PolyLine
    - C    '_Copy
    - D    '_Distance
    - MI   '_Mirror
    - F    '_Fillet
    - R    '_Rotate
    - T    '_Trim
    - H    '_Hide
    - HH   ! _Invert _Hide
    - ES   ! _ExtrudeCrv _Pause _Solid=_yes
    - EC   ! _ExtrudeSrf _Pause _Solid=_Yes
    - BU   ! _BooleanUnion
    - BD   ! _BooleanDifference
    - BS   ! _BooleanSplit
    - S     '_Show
    - SS   '_ShowSelected
    - ME  ! _MoveEdge

  [Keyboard]
    - F4    !_disableosnap _toggle
    - F5    !_projectosnap _toggle
                   ★Project : CPlane 까지 스냅을 투영하는 기능
※ toggle = on/off

  [Grid]
    - Grid line count : 300     =원하는 값 입력 (300일 경우 -30,000 ~ 30,000 범위)

    - Minor grid lines every : 100 millimeters
    - Major lines every : 10 minor grid lines
    - Show grid axes : check
    - Snap spacing : 100 millimeters

    " File - Save As Template - 'Architectural - Millimeters' - 저장 "


※ Document Properties 초기화항목 / Rhino Options  설정유지

  [Shaded View]

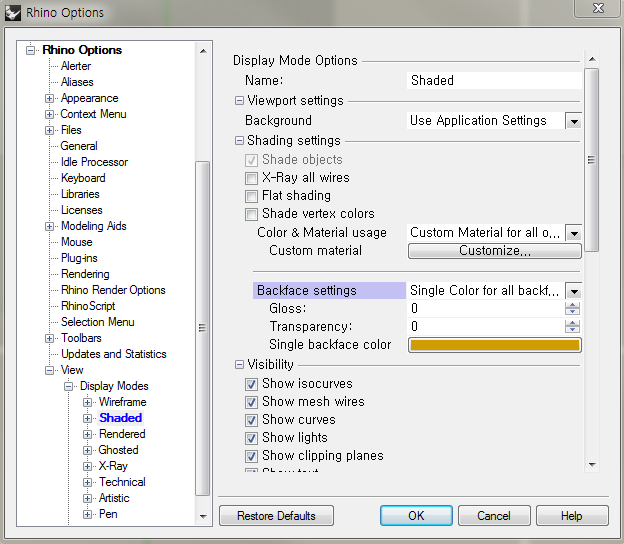

    " Rhino Option - View - Display Modes - Shaded "

    - Backface settings : Single Color for all backfaces
    - Single backface color : Gold (not yellow)


    "Rhino Option - View - DisplayModes - Shaded - Objects - Surfaces "

    - Isocurve color usage : Use specigied UV colors
    - U color : Brown / V color : Dark Green

  ※ Surface에 Layer 색이 입혀지지 않을 때
    " Rhino Option - View - OpenGL - Use accelerated hardware modes - check "


3. Osnap (F3)
    - End
    - Near
    - Point : ※Divide : 선을 n등분으로 나눠 point로 표시
    - Mid
    - Cen : 2차함수(호, 원, 타원), 닫힌 폴리라인, 닫힌 폴리라인으로 생긴 면 등의 중심점
    - Int : 교차점        ※선과 면이 만나는 노란색 점은 스냅이 잡히지 않는다.
    - Perp : 커브에 수직인 점
    - Tan : 커브에 접하는 점
    - Quad : 극점
    - Knot : NURBS에서 설명
    - Vertex : 메쉬의 정점
    - Project (F4) : Cplane까지 스냅을 투영
    - Disable




4. NURBS

  [Degree]


  [Control Point]


  [Knot]


  [Continuity]

Concept

Design 첫 단계의 큰 단위
Generalized idea- particular idea
Expandable/develop
Framework
Mental image: 경험에서 빗어진 생각
Project의 Needs에 관한 전략과 전술
문법적 과정단계별로 발전
Designer의 첫 생각
Problem 속에 answer
Project의 다양한 문제들의 해석으로서 특성을 찾고
 이에 대한 특정의 문제의 해석과 해답을 찾음.
 개개인의 문제들의 해답들을 찾고 다시 종합하여 하나로.
Functional Zoning, Architectural space, Circulation, Form, Context response
Client에게 presentation 할 때 Motivation, 자신의 능력에 대한 인식가치관타인에 대한 배려 등을 보여줌
건강한안전한효율적인경제적인미적인 건축물
형태구조재료 개념의 명료성
그 민족지역사회의 문화적 가치의 표현

Site Planning

Location, size, shape, contour, drainage pattern,
 zoning & setback, utilities, significant site feature,
 traffic-pedestrian & vehicle, neighborhood pattern & characteristic,
 view, climate, possible development/impact of area,
 public facilities, commercial facilities
Site as active network, dynamic, relation with
responsibility
Communication
Efficiency
Project→problemanalysisconceptualizationdata
 synthesissolution & testingrefinement of design solution
Problem=answer
Contextual analysis: pre-design research

Elements

Brick, stone, mortal, glass
Wall, column, slab, platform, door, window
Define area of ground: 택지조성
Market, landmark
Roof, canopy, path, stair, ramp, elev, bridge
Light(natural, artificial), color, texture, sound, view,
 temperature, air movement, scale, smell, pavement,
 daylight, dimmer, filtering, scooping, skylight, spotlight,
 atmosphere, material, shadow, shade
Heating ventilation, air conditioning

Place

Pattern

Arrangement
Difference
Composition
Construction
Ground, gravity, sky, space, time, material, human,
 desire, belief, aspiration, sensibility, stimuli, activity
User, designer, contributor, participator

신범식 교수님의 2학년이 알아야할 건축용어

Aedicule
Aisle
Altar
Apse
Amphitheater
Arcade
Keystone
Arch
Architrave
Art deco
Art nouveau
Arts and craft movement
Atrium
Avant-garde
Baldachin
Baluster
Basilica
Bearing wall
Beton brut
Buttress
Canopy
Cantilever
Chiaroscuro
Cladding
Clerestroy
Cloister
Pediment
Cluster
Collage
Colonnade
Collage
Entasis
Pier
Contour
Cornice
Cupola
Curtain wall
Dome
Drapery
Gable
Embossing
Engraving
Entablature
Façade
Fascia
Fluting
Flashing
Flying
Buttress
Folly
Frieze
Glaze
Grotesque
Jamb
Kinetic
Kiosk
Bollard
Ktch
Kunst wollen
Lattice
Layout
Lintel
Loggia
Mezzanine
Module
Motif
Moulding
Mullion
Mural
Nave
Niche
Alcove
Obelisk
Oculus
Passage
Pavillion
Pedestal
Perspective
Piano noble
Piazza
Pilaster
Pile
Pillar
Piloti
Plinth
Porch
Portico
Profile
Proportion
Hand rail
Rise
Tread
Retaining wall
Restoration
Redevelopment
Rotunda
Rustication
Sand blasting
Schema
Silhouette
Soffit
Solar
Spandrel
Tectonic
Texture
Insulation
Hinge
Lavatory
Door stop
Stairwell
Staircase
Landing
Stair nose
Flexibility
Radiator
Beam
Truss
Expansion joint
Damp proofing
Sound proof
Fire proof
Thermal proof
Water proof
Drainage
Electric conduit
Bay window
Vibration
Ventilation
Fire place
Paving
Gypsum board
Built-in closet
Attic
Foyer
Pantry
Blind
Brise-soleil
Louver
Specification
Sprinkler
Activity
Alternative
Architectural firm
Density
Building code
Building permit
Curb stone
Detached house
Dry area
Duct
Drive way
Dumb waiter
Dust chute
Contractor
Non-slip
Top light
Skylight
Party wall
Pent house
Pedestrian
Partition
Pitched roof
Reception caseier
Solid
Void
